Tidy Tuesday: 18 August 2020
This week’s data can be found here. It contains data on episodes of Chopped, a TV show challenging chefs with cooking particular ingredients.
chopped <- readr::read_tsv('https://raw.githubusercontent.com/rfordatascience/tidytuesday/master/data/2020/2020-08-25/chopped.tsv')In this post, I will do some data wrangling: unnesting columns that are really multiple rows in one, and then cleaning strings using some basic heuristics so that I can group them more efficiently.
Unnesting data
Say I am interested in analysing the sorts of ingredients that participants are given. Unfortunately, in this datasets the episode ingredients are listed episode-by-episode, rather than having a row per ingredient. In “tidyverse language”, this can be described as nested data: a single column really contains several rows’ worth of data.
I iterate over appetizer, entree, and dessert ingredients to create a ‘long’ version of this data, with a row per ingredient as I want it.
unnest_course <- function(course_var){
course <- dplyr::enquo(course_var)
chopped %>%
dplyr::select(season, series_episode, episode_rating, ingredient = !!course) %>%
dplyr::mutate(ingredient := strsplit(tolower(ingredient), ", ")) %>%
tidyr::unnest() %>%
dplyr::mutate(course = course_var)
}
ingredients <- purrr::map_dfr(c('appetizer', 'entree', 'dessert'), unnest_course)Unique ingredients

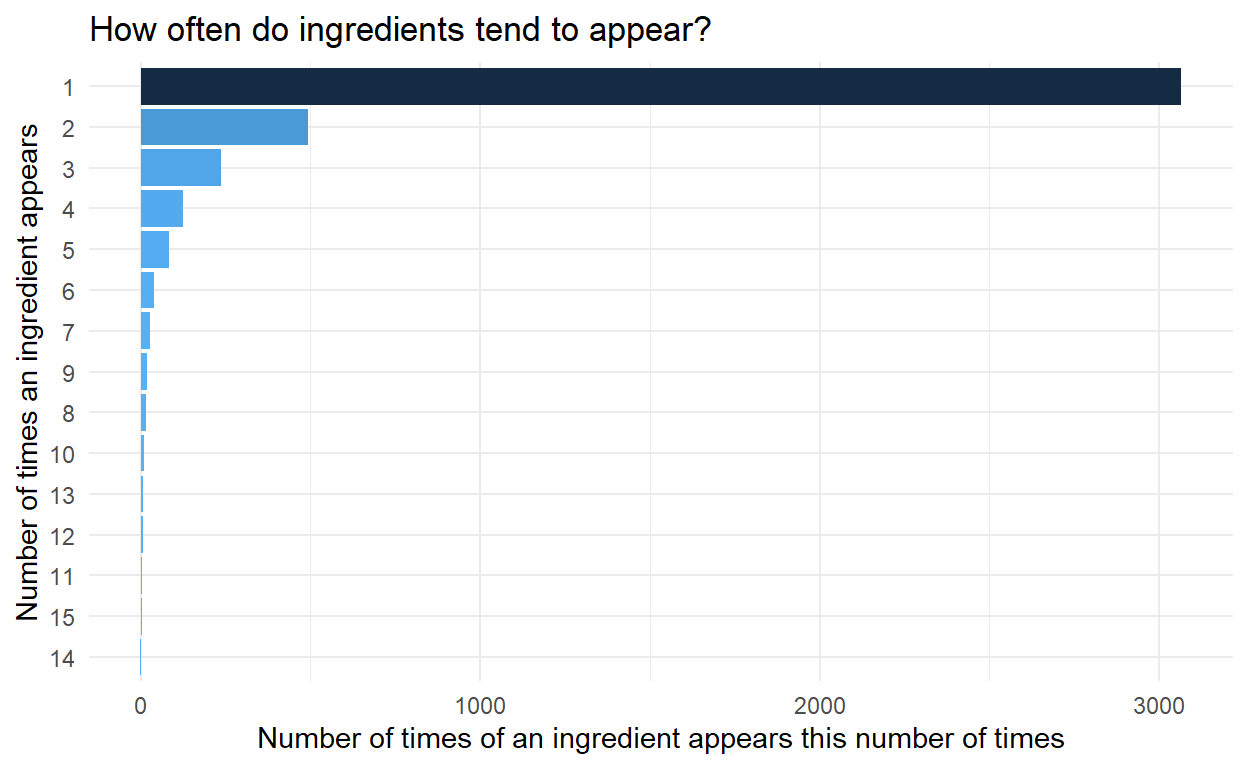

Now, part of the charm of Chopped is that the ingredients are often unique. Therefore, to keep the show fresh for regular watchers, most ingredients appear just once. Prepare yourself for the most meta histogram ever!
ingredients %>%
dplyr::group_by(ingredient) %>%
dplyr::summarise(count = n()) %>%
dplyr::group_by(count) %>%
dplyr::summarise(count_count = n()) %>%
ggplot(aes(x = reorder(count, count_count), y = count_count, fill = -count_count))+
geom_histogram(stat = 'identity')+
coord_flip()+
labs(title = 'How often do ingredients tend to appear?',
x = 'Number of times an ingredient appears',
y = 'Number of times of an ingredient appears this number of times')+
theme_minimal()+
theme(legend.position = "none")
Hence, ideally we’d group ingredients together. For example, there are plenty of rum-related ingredients, but ‘rum’ as an ingredient only appears once!
ingredients %>%
dplyr::filter(grepl('(^| )rum( |$)', ingredient)) %>%
dplyr::arrange(ingredient)
# A tibble: 11 x 5
season series_episode episode_rating ingredient course
<dbl> <dbl> <dbl> <chr> <chr>
1 10 117 NA coconut rum dessert
2 27 333 8.3 rum dessert
3 27 329 7.7 rum & cola dessert
4 31 375 7.9 rum butter ice cream dessert
5 29 361 8.4 rum raisin chèvre dessert
6 25 308 8.9 rum raisin ice cream appetizer
7 38 476 NA rum runners dessert
8 11 133 8.5 spiced rum dessert
9 14 162 8.8 spiced rum dessert
10 30 367 7.4 spiced rum dessert
11 35 435 8.8 spiced rum dessert Can we group these strings in such a way that we can reasonably certainly collapse some together? We will try a few ways, and decide on the best option through a combination of these heuristics.
Heuristic one: single-word ingredients
For a lot of ingredients, there will be a one-word version, and then a multi-word ‘cheffy’ version. Take octopus, for example:
ingredients %>%
dplyr::filter(grepl('(^| )octopus( |$)', ingredient)) %>%
dplyr::arrange(ingredient)
# A tibble: 11 x 5
season series_episode episode_rating ingredient course
<dbl> <dbl> <dbl> <chr> <chr>
1 1 1 9.2 baby octopus appetizer
2 8 91 8.5 baby octopus appetizer
3 35 434 8.7 baby octopus appetizer
4 36 456 8.6 baby octopus appetizer
5 31 387 8.1 baby octopus entree
6 5 62 8.6 octopus appetizer
7 11 123 8.6 octopus appetizer
8 21 256 8.7 octopus appetizer
9 10 117 NA octopus entree
10 39 492 NA octopus balls entree
11 45 559 NA octopus corn dogs entree Baby octopus and octopus balls are still octopus… So I’d like to count them as one. To start, I create a vector of single-word ingredients that appear in this dataset.
single_words <- ingredients %>%
dplyr::filter(grepl("^[a-z'-]*$", ingredient)) %>%
dplyr::select(ingredient) %>%
dplyr::filter(nchar(ingredient) > 3) %>% # remove odd ones like 'red'
unique(.) %>%
pull()Then, for each ingredient in the complete list, I see if there’s a string match. If there is, I extract the string match into a new column.
ingredients$single_ingredients <- NA
for(word in single_words){
ingredients <- ingredients %>%
dplyr::mutate(single_ingredients = ifelse(!is.na(single_ingredients),
single_ingredients,
stringr::str_match(ingredient, paste0('(^| )', word, '($| )'))))
}
ingredients$single_ingredients <- gsub('(^ )|( $)', '', ingredients$single_ingredients)
ingredients %>%
dplyr::group_by(single_ingredients) %>%
dplyr::summarise(count = n()) %>%
dplyr::arrange(-count)
# A tibble: 580 x 2
single_ingredients count
<chr> <int>
1 <NA> 3434
2 duck 50
3 potatoes 48
4 coconut 47
5 bacon 44
6 mushrooms 43
7 beer 42
8 turkey 41
9 ginger 35
10 watermelon 35
# ... with 570 more rowsGiven that our full ingredients list was 6788 rows long, this has allowed us to group about half of the ingredients already!
Heuristic two: bigrams
Could we do this trick again, with two-word matches? Two-word phrases are known as ‘bigrams’; tidytext, usually designed for natural language processing, will let us create these bigrams easily. It also has in-built stopword lists, which we can use to remove bigrams that include things like ‘of’ or ‘and’.
bigrams <- ingredients %>%
dplyr::filter(is.na(single_ingredients)) %>%
dplyr::select(ingredient) %>%
dplyr::mutate(ingredient = stringr::str_extract_all(ingredient, pattern = '[a-z]+ [a-z]+')) %>%
tidyr::unnest() %>%
tidyr::separate(ingredient, c("word1", "word2"), sep = " ") %>%
dplyr::filter(!word1 %in% tidytext::stop_words$word) %>%
dplyr::filter(!word2 %in% tidytext::stop_words$word)%>%
tidyr::unite(bigram, word1, word2, sep = ' ') %>%
unique(.) %>%
pull(bigram) Now we use the same loop to go through the bigram ingrediens.
ingredients$bigram_ingredients <- NA
for(bigram in bigrams){
ingredients <- ingredients %>%
dplyr::mutate(bigram_ingredients = ifelse(is.na(bigram_ingredients), # If we already have a bigram ingredient, keep it
stringr::str_match(ingredient, as.character(bigram)),
bigram_ingredients))
}
ingredients %>%
dplyr::group_by(bigram_ingredients) %>%
dplyr::summarise(count = n()) %>%
dplyr::arrange(-count)
# A tibble: 1,788 x 2
bigram_ingredients count
<chr> <int>
1 <NA> 3402
2 ice cream 55
3 sweet potato 27
4 peanut butter 26
5 white chocolate 19
6 cream cheese 18
7 brussels sprouts 17
8 bok choy 15
9 potato chips 15
10 blood orange 14
# ... with 1,778 more rowsThis covers roughly the same number of rows as the single ingredients! But possibly not the same ones.
Combine heuristics
Since the single-word heuristic will group more ingredients into one, that one takes precedence. Wherever that one didn’t match, we can fill in the bigram instead.
ingr_grouped <- ingredients %>%
dplyr::mutate(ingr_group = ifelse(!is.na(single_ingredients), single_ingredients, bigram_ingredients))
ingr_grouped %>%
dplyr::group_by(ingr_group) %>%
dplyr::summarise(count = n()) %>%
dplyr::arrange(-count)
# A tibble: 2,359 x 2
ingr_group count
<chr> <int>
1 <NA> 207
2 duck 50
3 potatoes 48
4 coconut 47
5 bacon 44
6 ice cream 43
7 mushrooms 43
8 beer 42
9 turkey 41
10 ginger 35
# ... with 2,349 more rowsThis has helped us label nearly every row! Judging from the ingredient group values we get back, many groups were single-word only; however, “ice cream” apparently shows up lots on this show!

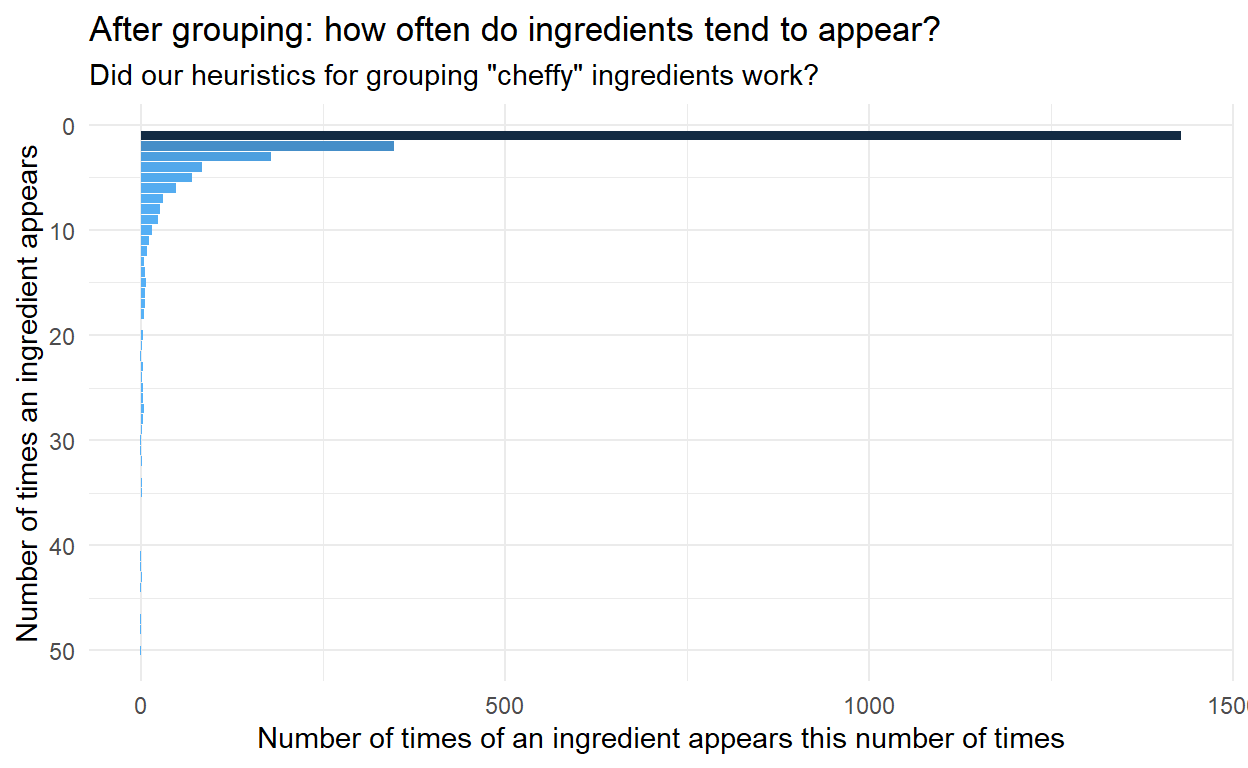

However, the real question is: how many groups are now bigger than they were before?
ingr_grouped %>%
dplyr::filter(!is.na(ingr_group)) %>%
dplyr::group_by(ingr_group) %>%
dplyr::summarise(count = n()) %>%
dplyr::group_by(count) %>%
dplyr::summarise(count_count = n()) %>%
ggplot(aes(x = count, y = count_count, fill = -count_count))+
geom_histogram(stat = 'identity')+
scale_x_reverse()+
coord_flip()+
labs(title = 'After grouping: how often do ingredients tend to appear?',
subtitle = 'Did our heuristics for grouping "cheffy" ingredients work?',
x = 'Number of times an ingredient appears',
y = 'Number of times of an ingredient appears this number of times')+
theme_minimal()+
theme(legend.position = "none")
Although there is still a significant number of items appearing just once, the tail is longer: there are now ingredient groups that appear 20+ times, which was not the case before!
